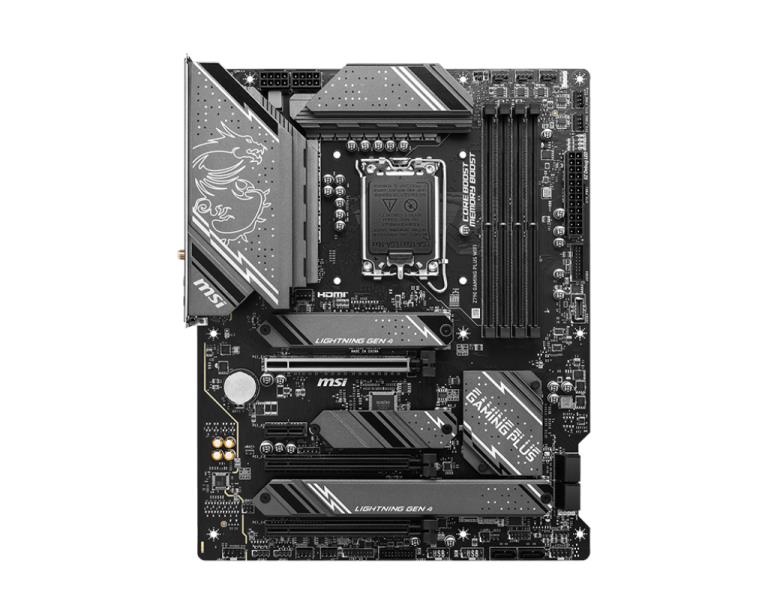

Scheda madre Msi Z790 GAMING PLUS WIFI - Supporto processori Intel® Socket 1700 12/13th/14th Gen Intel® Core Pentium® Gold and Celeron® - Ram 4x DDR5 - Hdmi, DisplayPort - RAID 0,1,5,10 - Usb3.0 / Usb2.0 - GLan - Audio HD - ATX
Dettagli
Supporta processori Intel® Core™ di 14a/13a/12a generazione, processori Intel® Pentium® Gold e Celeron® per socket LGA 1700
Supporta memoria DDR5, fino a 7200+(OC) MHz
Design di alimentazione avanzato: sistema di alimentazione Duet Rail 14+1+1 con DrMOS, doppi connettori di alimentazione CPU a 8 pin, Core Boost, Memory Boost
Soluzione termica premium: dissipatore di calore esteso, pad termici MOSFET da 7 W/mK, pad termici choke aggiuntivi sono realizzati per un sistema ad alte prestazioni e un'esperienza di gioco non-stop
Esperienza di gioco velocissima: slot PCIe 5.0, Lightning Gen 4 x4 M.2 con M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
PCB di alta qualità: PCB a 6 strati realizzato in rame addensato da 2 once
Potenziamento audio: premia le tue orecchie con una qualità del suono di livello studio per un'esperienza di gioco più coinvolgente
| Chipset |
INTEL Z790 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700 |
| Memory |
4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI™
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN |
Intel® 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output |
| Internal IO |
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| LED FEATURE |
4x EZ Debug LED |
| BACK PANEL PORTS |
- Keyboard / Mouse
- DisplayPort
- USB 2.0
- 2.5G LAN Port
- Wi-Fi / Bluetooth Antenna
- Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI™ 2.1 Port
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2x2 20Gbps Type-C
- USB 3.2 Gen 2 10Gbps Type-A
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
ATX
243.84mmx304.8mm |
| |
| | | | | |
Ulteriori informazioni
| Codice prodotto |
TR058974 |
| EAN |
4711377134712 |
| Marca |
Msi |
| Socket CPU |
LGA1700 |
| Famiglia processore |
Intel |
| Dimensione |
ATX |
| Condizione |
Nuovo |
|
| |
| |
