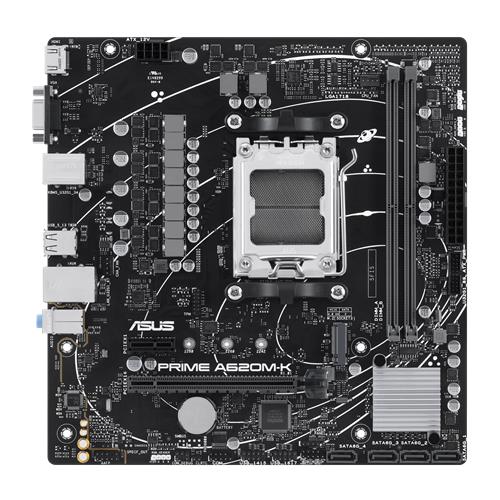

Scheda Madre Asus PRIME A620M-K - Socket AM5 - Supporta i processori AMD Socket AM5 Ryzen 7000 - 2x DDR5 - RAID 0, 1,10 - Vga, Hdmi - USB 3.2/2.0 - Gigabit LAN - Audio HD 7.1 - PCI Express x16 - mATX
Dettagli
Gen 1 Type-A, SATA 6 Gbps, cancellazione del rumore AI bidirezionale, sincronizzazione Aura
Socket AMD AM5: pronto per i processori desktop AMD Ryzen™ serie 7000
Connettività ultraveloce: PCIe 4.0, slot M.2 da 64 Gbps, Realtek 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Raffreddamento completo: dissipatore di calore PCH e Fan Xpert
Illuminazione Aura Sync RGB: connettori Gen 2 indirizzabili integrati e connettore Aura RGB per strisce LED RGB, facilmente sincronizzabili con l'hardware compatibile con Aura Sync
Cancellazione del rumore AI bidirezionale: riduce il rumore di fondo dal microfono e dall'uscita audio per comunicazioni cristalline nei giochi o nelle videoconferenze
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Supports up to AMD 120W CPU
* Refer to www.asus.com for CPU support list.
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
1 x VGA port
1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD A620 Chipset
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
256 Mb Flash ROM, UEFI AMI BIOS
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Windows® 11, Windows® 10 64-bit
micro-ATX Form Factor
8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
| |
| | | | | |
Ulteriori informazioni
| Codice prodotto |
TR058473 |
| EAN |
4711387242087 |
| Marca |
Asus |
| Funzioni Speciali |
VR Ready |
| Socket CPU |
AM5 |
| Famiglia processore |
Amd |
| Dimensione |
MicroATX |
| Condizione |
Nuovo |
|
| |
| |
